Pixel Configuration | SMD2020 |
Pixel pitch（mm） | P2.97 |
Pixel density（dots/m2） | 112896 |

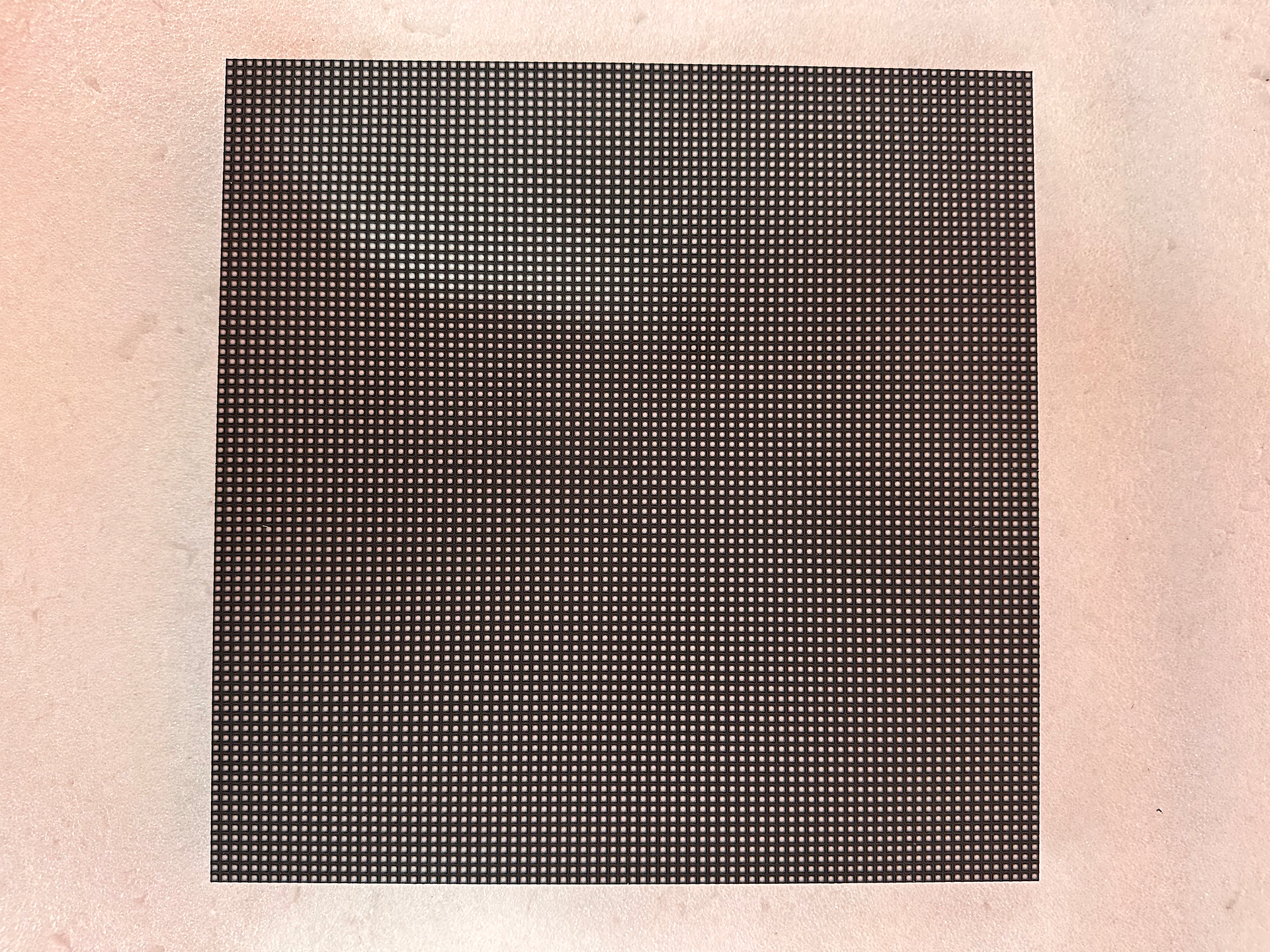

Module resolution（W×H） | 84×84 |
Module size （mm） | 250（W）×250（H） |
Module weight （kg） | 0.72 |
Maximum power consumption of the module（W） | 45 |
Module of cabinet （W×H） | 2×2/2×4 |
Cabinet resolution（W×H） | 168×168/168×336 |
Cabinet size （mm） | 500mmx500mm/500mmx1000mm |
Cabinet area（m2） | 0.25/0.5 |
Cabinet weight （kg） | 8kg/14kg |
Cabinet level up degree（mm) | ≤0.2 |

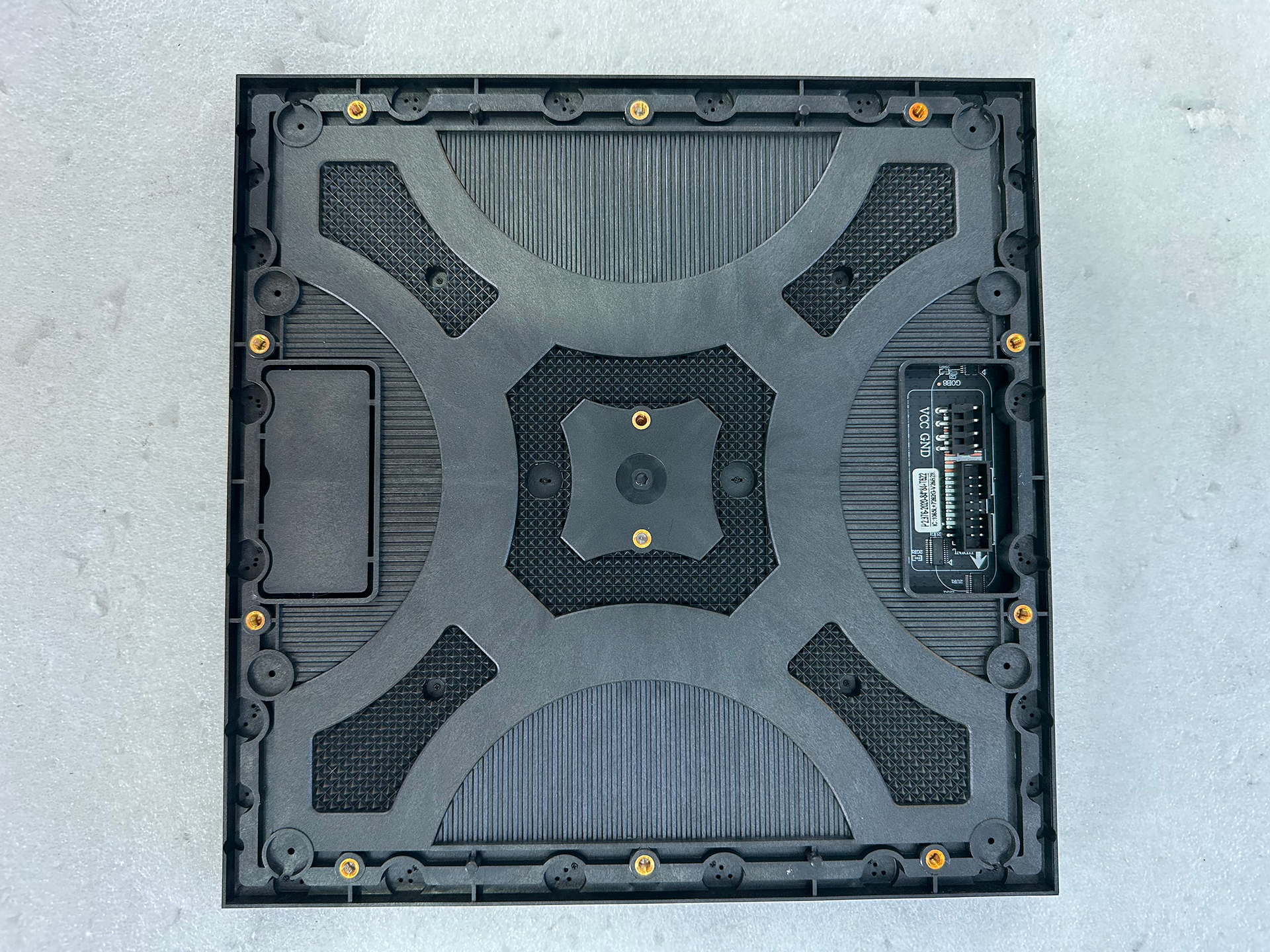

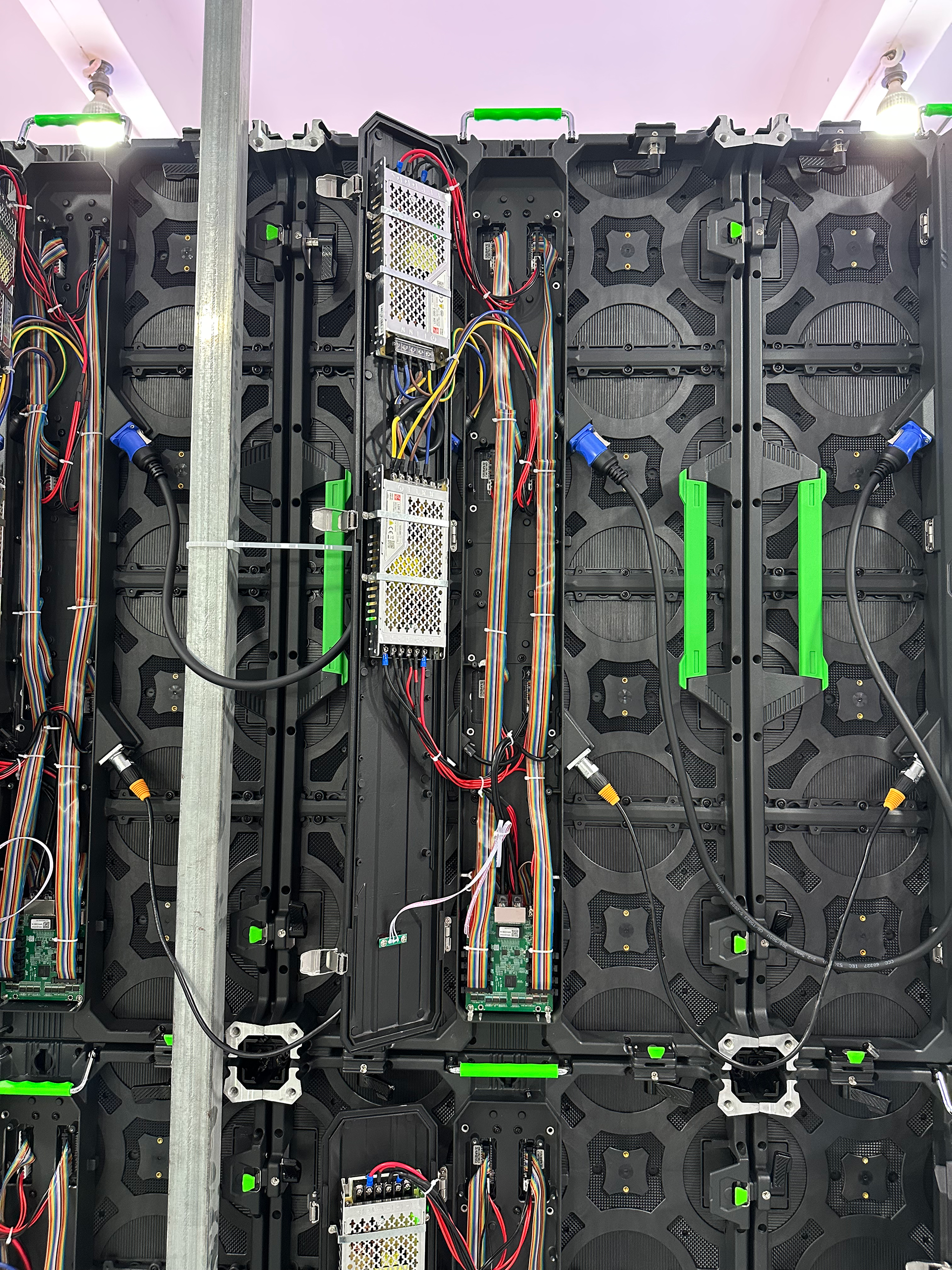

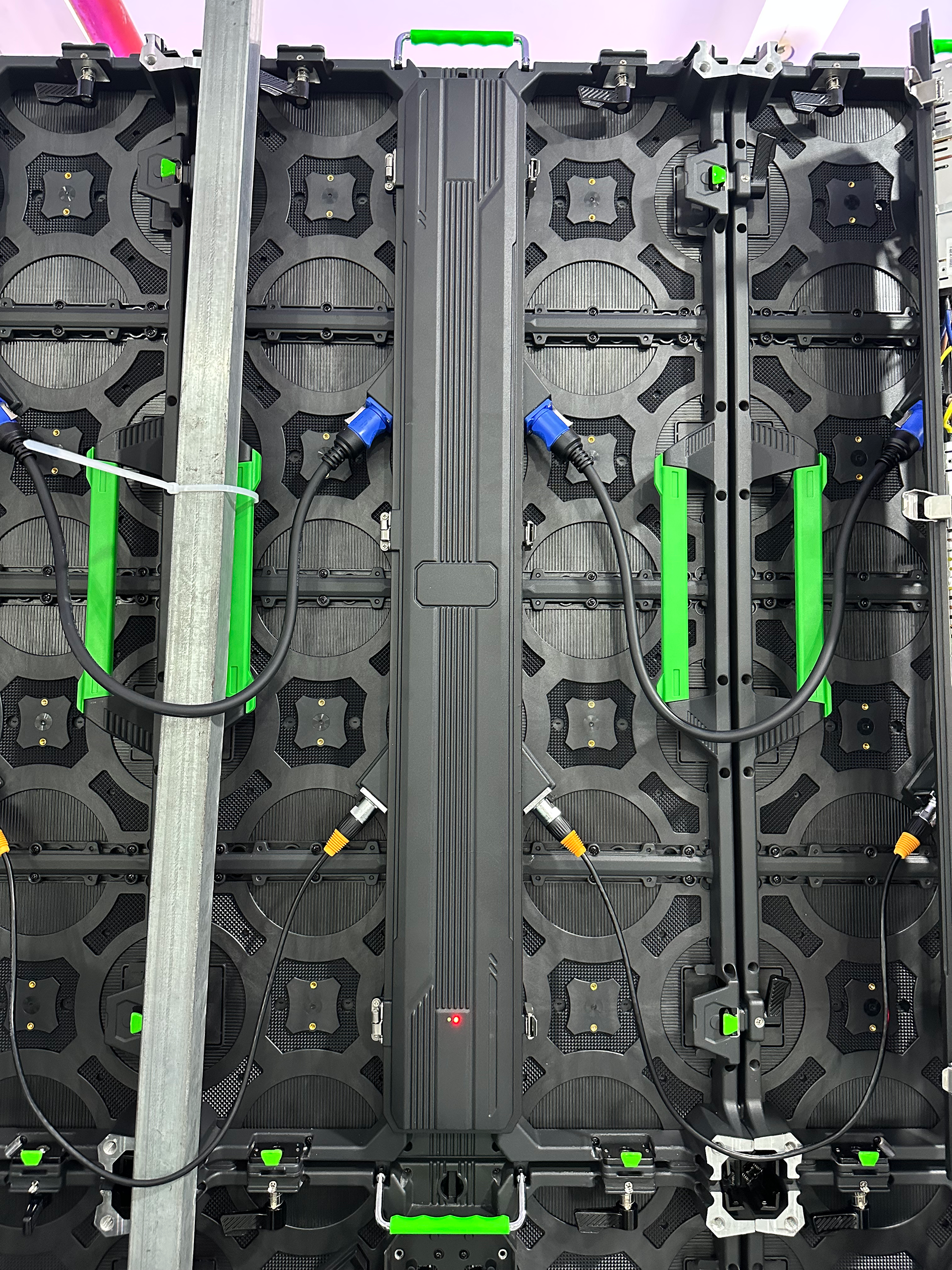

Maintenance mode | Rear |
Cabinet raw material | Die-casting aluminum |
Single-point brightness correction | yes |
Single – point color correction | yes |
White Balance Brightness （nits） | ≥3500（6500K） |
Color Temperature (K) | 3200—9300(adjustable) |
Viewing Angle (Horizontal / Vertical) | 160/120 |
Deviation of center distance of light – emitting | <3% |
Brightness / chromaticity uniformity | ≥97% |
Contrast | 4000：1 |
Peak power consumption (W / m2) | 800 |
Average power consumption (W / m2) | 250 |

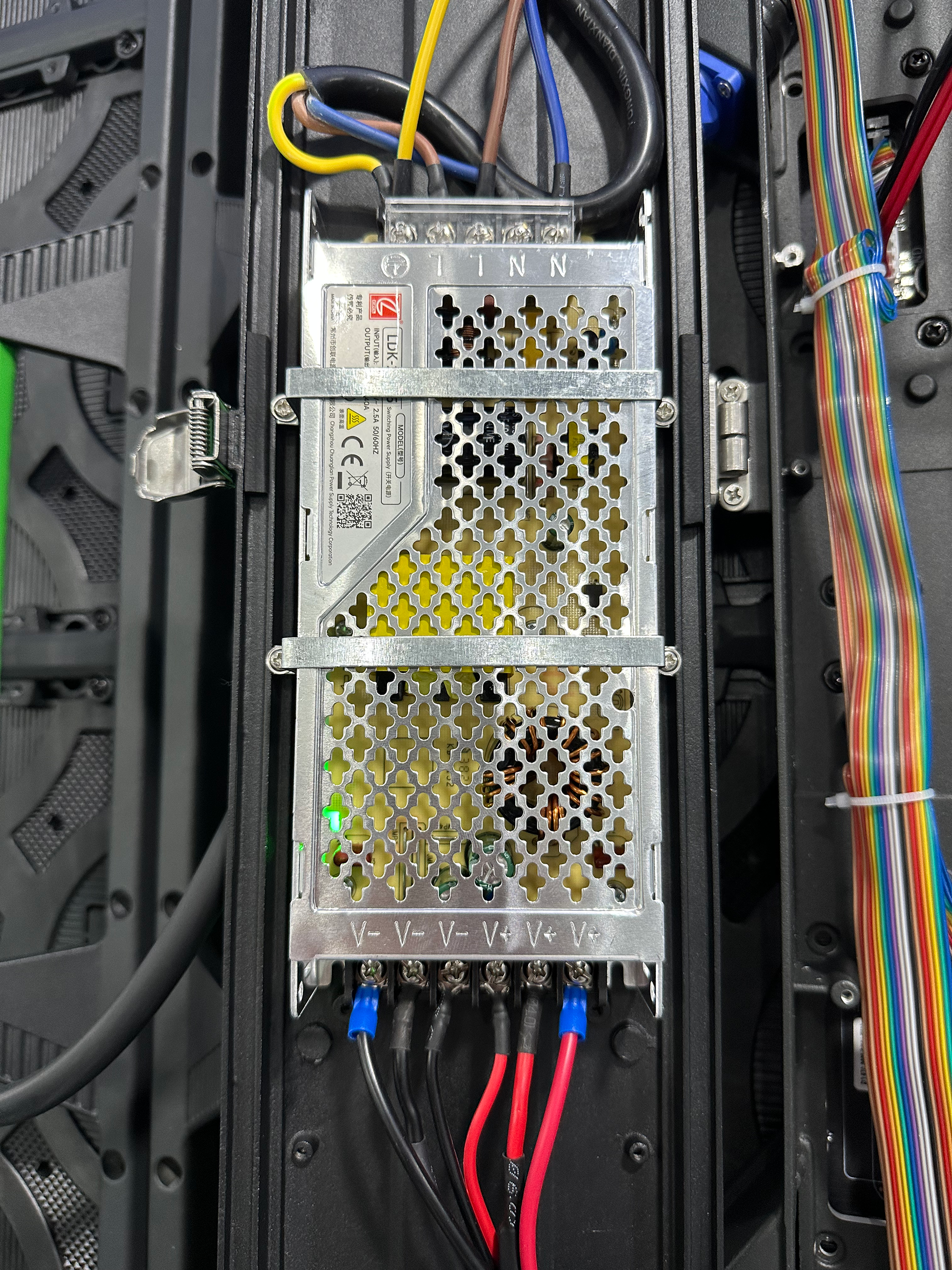

Power supply requirements | AC90~264V，frequency 47-63（Hz） |
Frame rate (Hz) | 50&60 |
Drive mode | Constant drive，1/28 scan |
Grayscale level | 65536 |
Refresh rate (Hz) | ≥3840 |
Number of color processing bits | 14bit |
Video playback capabilities | 2KHD，4KHD |
Operating temperature / humidity range (℃ / RH) | -20 – 60 / 10%-85%RH |
Storage temperature / humidity range (℃ / RH) | -20 – 60 / 10%-85%RH |
Applicable standards | CE-EMC, CE-LVD,RoHS |
